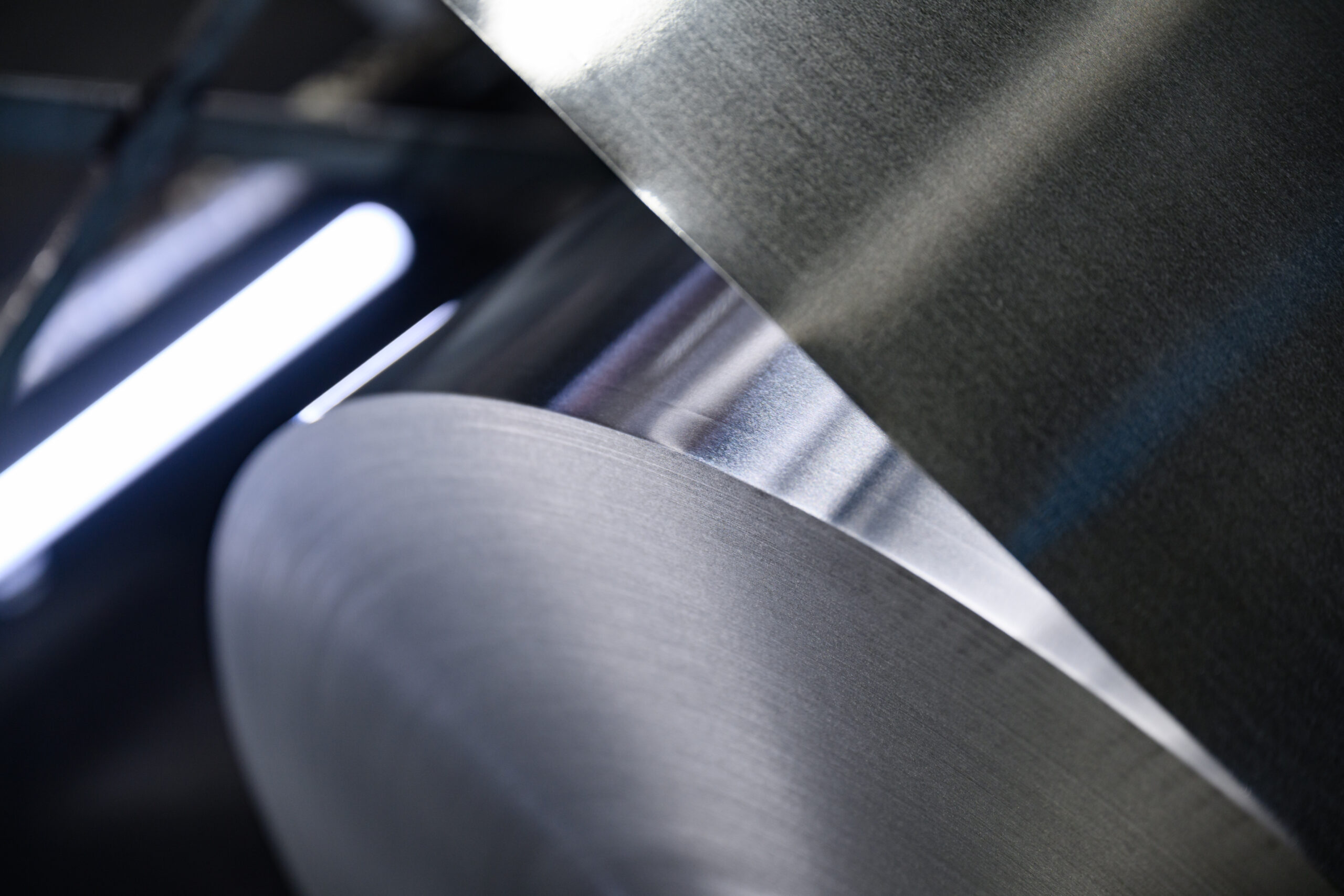

Stainless Steel Alloy 302
Austenitic Stainless Foil
An austenitic stainless and one of the most widely used alloys in the family. Its 19% chromium content gives strong resistance in oxidizing environments, and it shows up regularly in architectural work and building facades. Carbon content runs slightly higher than 304. Most commonly supplied in strip and wire forms. Plenty of users have moved to 304 and 304L on availability and cost. We stock 302 and will tell you honestly whether that switch makes sense for your application.
Material Range
Comet Metals maintains aluminum inventory and converting capabilities across a wide range of sizes and formats.
| Thickness: | .0007” to .025” |
| Widths: | .250” to 36” |
| Tempers: | Ann, 1/4, 1/2, 3/4, full hard and spring |
| Finishes: | 2B, 4F, Dull and BA |
Built for use by:
Infrastructure
Automotive
Manufacturing
HVAC
Aerospace
Medical
Electronics
Specifications
| AMS Spec Number | 5516 |
| ASTM Standards | A666 |
Chemical Properties
| Carbon (C) | 0.15% |
| Chromium (Cr) | 18% |
| Manganese (Mn) | 2% (Max) |
| Molybdenum (Mo) | – |
| Nickel (Ni) | 9% |
| Nitrogen (N) | – |
Mechanical Properties
| Elongation (Annealed) | 40 (Min) |
| Elongation (1/4 Hard) | 9 (Min) |
| Elongation (1/2 Hard) | 15 (Min) |
| Elongation (3/4 Hard) | 10 (Min) |
| Elongation (Full Hard) | 3 (Min) |
| Elongation (Spring) | 1 (Min) |
| Rockwell (Annealed) | B92 |
| Rockwell (1/4 Hard) | B92 |
| Rockwell (1/2 Hard) | B92 |
| Rockwell (3/4 Hard) | B92 |
| Rockwell (Full Hard) | B92 |
| Tensile Strength (Annealed) | 95 (Min) |
| Tensile Strength (1/4 Hard) | 125 to 150 |
| Tensile Strength (1/2 Hard) | 150 to 175 |
| Tensile Strength (3/4 Hard) | 175 to 200 |
| Tensile Strength (Full Hard) | 185 (Min) |
| Tensile Strength (Spring) | 200 (Min) |
| Yield Strength (Annealed) | 30 to 60 |
| Yield Strength (1/4 Hard) | 75 (Min) |
| Yield Strength (1/2 Hard) | 110 (Min) |
| Yield Strength (3/4 Hard) | 135 (Min) |
| Yield Strength (Full Hard) | 185 (Min) |
| Yield Strength (Spring) | 185 (Min) |
| Yield Strength (Extra Spring Hard) | 140 (Min) |
Physical Properties
| Coefficient of Thermal Expansion | 9.6 in/in/°F x 10^6 |
| Density | 0.287 lbs./cu.in. |
| Modulus of Elasticity | 28 x 10^6 psi |
| Thermal Conductivity | 9.4 BTU/sq.ft/hr/°F |
